PLOT3D

The PLOT3D function draws a three-dimensional plot of vector arguments.

Example

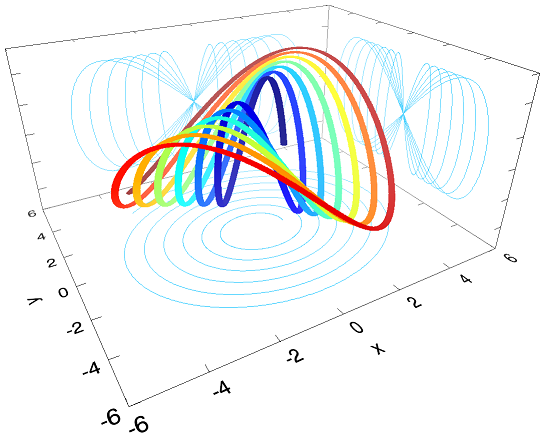

The following lines create the plot shown at the top of this topic.

; Create some data.

t = FINDGEN(4001) / 100

x = COS(t) * (1 + t / 10)

y = SIN(t) * (1 + t / 10)

z = SIN(2 * t)



p = PLOT3D(x, y, z, 'o', /SYM_FILLED, $

  XRANGE=[-6, 6], YRANGE=[-6, 6], $

  ZRANGE=[-1.4, 1.4],$

  AXIS_STYLE=2, MARGIN=[0.2, 0.3, 0.1, 0], $

  XMINOR=0, YMINOR=0, ZMINOR=0, $

  DEPTH_CUE=[0, 2], /PERSPECTIVE, $

  RGB_TABLE=33, VERT_COLORS=BYTSCL(t), $

  SHADOW_COLOR="deep sky blue", $

  XY_SHADOW=1, YZ_SHADOW=1, XZ_SHADOW=1, $

  XTITLE='x', YTITLE='y')



; Hide the three axes in the front.

; Get the array of axes and hide

; them individually.

ax = p.AXES

ax[2].HIDE = 1

ax[6].HIDE = 1

ax[7].HIDE = 1

Additional Examples

See Plot examples for additional examples using the PLOT3D function.

Syntax

graphic = PLOT3D(X, Y, Z, [Format] [, Keywords=value] [, Properties=value])

Keywords

Keywords are applied only during the initial creation of the graphic.

AXIS_STYLE=value

/BUFFER, /CURRENT, /DEVICE, DIMENSIONS=[width, height], LAYOUT=array, LOCATION=[x, y], MARGIN=scalar or [left, bottom, right, top], /NO_TOOLBAR, /NODATA, /OVERPLOT, /WIDGETS

DEPTH_CUE=array

/PERSPECTIVE

Properties

Properties can be set as keywords to the function during creation, or retrieved or changed using the "." notation after creation.

ANTIALIAS, ASPECT_RATIO, ASPECT_Z, AXES, BACKGROUND_COLOR, BACKGROUND_TRANSPARENCY, CLIP, COLOR, CROSSHAIR, EYE, FONT_COLOR, FONT_NAME, FONT_SIZE, FONT_STYLE , HIDE , LINESTYLE, NAME, POSITION, RGB_TABLE , SHADOW_COLOR ,SYM_COLOR , SYM_FILLED, SYM_FILL_COLOR , SYM_INCREMENT, SYM_OBJECT , SYM_SIZE , SYM_THICK , SYM_TRANSPARENCY, SYMBOL , THICK, TITLE , TRANSPARENCY , UVALUE, VERT_COLORS, WINDOW, WINDOW_TITLE, XY_SHADOW, XZ_SHADOW, YZ_SHADOW, ZCLIP

Methods

Close

ConvertCoord

CopyWindow

Delete

Erase

GenerateCode

GetData

GetValueAtLocation

MapForward

MapInverse

Order

Print

Refresh

Rotate

Save

Scale

Select

SetData

Translate

Return Value

The PLOT3D function returns a reference to the created graphic. Use the returned reference to manipulate the graphic after creation by changing properties or calling methods.

Arguments

X, Y, Z

Vectors giving the x, y, and z coordinates of the plot.

Format

A string that sets line and symbol format properties using short tokens to represent color, symbol, linestyle, and thickness values. For example, to create a plot with a solid red line of thickness 2, using the '+' symbol to mark data points, you would use the following:

p = PLOT3D(data, '-r2+')

Tokens in the Format string represent values of the LINESTYLE, COLOR, THICK, and SYMBOL properties. From one to four tokens can be present, and the tokens may be in any order. Tokens are case sensitive. For more information about the syntax of the Format argument, see Formatting IDL Graphics Symbols and Lines.

Keywords

Keywords are applied only during the initial creation of the graphic.

AXIS_STYLE

Set this keyword to one of the following values:

You can set the following properties on the axes:

Property

Description

[XYZ]COLOR

A string or RGB vector containing the axis color.

[XYZ]GRIDSTYLE

A string, integer, or 2-element vector giving the linestyle for tickmarks.

[XYZ]LOG

Set to 1 if the axis is logarithmic. The minimum value of the axis range must be greater than zero.

[XYZ]MAJOR

The number of major tick marks. Set to -1 to auto-compute, set to 0 to suppress.

[XYZ]MINOR

The number of minor tick marks. Set to -1 to auto-compute, set to 0 to suppress.

[XYZ]SUBGRIDSTYLE

A string, integer, or 2-element vector giving the linestyle for the minor tickmarks. The default is 0, for solid lines. Set to -1 to force minor ticks to have the same linestyle as major ticks.

[XYZ]SHOWTEXT

Set to 1 to show text labels or 0 to hide the text labels.

[XYZ]STYLE

The axis range style. The valid values are:

(0) Nice range. Default for all graphics except Image, Barplot, and Map.

(1) Force the exact data range. Default for Image, Barplot, and Map.

(2) Pad the axes slightly beyond the nice range.

(3) Pad the axes slightly beyond the exact data range.

The [XYZ]RANGE takes precedence over this property.

[XYZ]SUBTICKLEN

The ratio of the minor tick length to the major tick length. The default is 0.5.

[XYZ]TEXT_COLOR

A string or RGB vector containing the axis text color.

[XYZ]TEXT_ORIENTATION

The angle (in degrees) of the tick mark labels.

[XYZ]TEXTPOS

Set to 1 to position text above the axis. The default is 0, below the axis.

[XYZ]THICK

Set to a floating-point value between 0 and 10 to specify the line thickness for tickmarks. A thickness of 0 gives a thin hairline. The default is 1.

[XYZ]TICKDIR

Set to 1 to draw the tickmarks facing outwards. The default is 0, facing inwards.

[XYZ]TICKFONT_NAME

A string containing the font name for the axis text.

[XYZ]TICKFONT_SIZE

The axis text size in points.

[XYZ]TICKFONT_STYLE

A string or integer containing the font style: normal (0), bold (1), italic (2), or bold italic (3).

[XYZ]TICKFORMAT

A string or string array of tick label formats. See Format Codes for more information.

[XYZ]TICKINTERVAL

The interval between major tick marks.

[XYZ]TICKLAYOUT

Set to 1 to suppress tick marks; set to 2 to draw a box around the tick labels.

[XYZ]TICKLEN

The length of each major tick mark, normalized to the width or height of the graphic. The default value is automatically calculated based upon the aspect ratio of the graphic.

[XYZ]TICKNAME

A string array containing the tick labels.

[XYZ]TICKUNITS

A string giving the tick units. Valid values are: null (the default, signified by empty quotes), Years, Months, Days, Hours, Minutes, Seconds, Time, exponent for exponential notation, or scientific for scientific notation.

If any of the time units are utilized, then the tick values are interpreted as Julian date/time values. If more than one unit is provided, the axis will be drawn with multiple levels.

[XYZ]TICKVALUES

An array of tick mark locations.

[XYZ]TITLE

A string giving the axis title.

[XYZ]TRANSPARENCY

An integer from 0-100 giving the percent transparency.

For more detailed explanations of these properties, see the AXIS function.

Tip: You can also use the AXIS function to insert additional axes after the graphic has been created.

BUFFER

Set this keyword to 1 to direct the graphics to an off-screen buffer instead of creating a window.

CURRENT

Set this keyword to create the graphic in the current window with a new set of axes. If no window exists, a new window is created. The WINDOW's SetCurrent method may be used to set the current window.

Or, set this keyword to an existing IDL Graphic reference to make that window be the current window and direct the new graphic to that window.

Tip: The CURRENT keyword is usually used with the LAYOUT keyword or POSITION property to produce a window which has multiple graphics in different locations.

Tip: For the graphic share the same axes as an existing graphic, use the OVERPLOT keyword instead.

DEVICE

Set this keyword if values are specified in device coordinates (pixels) for the MARGIN and POSITION keywords. (Normalized coordinates are the default for these keywords.)

DIMENSIONS

Set this keyword to a two-element vector of the form [width, height] to specify the window dimensions in pixels. If you do not specify a value for DIMENSIONS, IDL by default uses the values of the IDL_GR_WIN_HEIGHT and IDL_GR_WIN_WIDTH preferences for Windows platforms or the IDL_GR_X_HEIGHT and IDL_GR_X_WIDTH preferences for X Windows systems on UNIX.

Tip: The minimum width is set by the toolbar in the window, usually around 400 pixels. To create a smaller graphics window, use the NO_TOOLBAR keyword.

LAYOUT

Set this keyword to a three-element vector [ncol, nrow, index] that arranges graphics in a grid. The first dimension ncol is the number of columns in the grid, nrow is the number of rows, and index is the grid position at which to place the graphic (starting at element 1). This keyword is ignored if either OVERPLOT or POSITION is specified.

LOCATION

Set this keyword to a two-element vector [X offset, Y offset] giving the window's screen offset in pixels.

MARGIN

Set this keyword to the current graphic’s margin values in the layout specified by the LAYOUT property. Use a scalar value to set the same margin on all sides, or use a four-element vector [left, bottom, right, top] to specify different margins on each side.

By default, margin values are expressed in normalized units ranging from 0.0 to 0.5. If the DEVICE keyword is set, the values are given in device units (pixels).

This keyword is ignored if either OVERPLOT or POSITION is specified.

NO_TOOLBAR

By default the graphics window will have a toolbar containing some common tools such as Print and Save. Set this keyword to remove the toolbar. This keyword has no effect if the window is already created.

Tip: When the toolbar exists, the minimum window width is set to the toolbar's width, usually around 400 pixels. To create a smaller graphics window, use the NO_TOOLBAR keyword.

NODATA

Set this keyword to 1 to create the graphic, but without any data attached to it. The axes and title (if present) are also created and displayed. If the OVERPLOT keyword is specified, axis ranges will not change.

Note: You must still provide valid input arguments. The data range of the input arguments are used to automatically set the range of the axes. The [XYZ]RANGE properties may be used to override these default ranges.

OVERPLOT

Set this keyword to 1 (one) to place the graphic on top of the currently-selected graphic within the current window. The two graphics items will then share the same set of axes. If no current window exists, then this keyword is ignored and a new window is created.

If you have a graphic in another window that is not currently selected, you can also set this keyword to that graphic's reference to overplot on top of that graphic.

Tip: For the graphic to have a new set of axes, use the CURRENT keyword instead.

WIDGETS

By default, when running from the IDL Workbench, the graphics window will use the native widgets for your platform. Set this keyword to instead use IDL widgets for the graphics window. This keyword is ignored when running from the IDL command line, since IDL widgets are always used in that case.

DEPTH_CUE

Set this keyword to a two-element vector [bright, dim] specifying the near and far planes for depth cueing, in normalized units. Depth cueing causes graphics objects that are further away to fade into the background. The first element is where the fade starts to take effect, while the second element is where the objects are completely transparent. Negative values are closer to the eye, while positive values are farther from the eye. The default value is [0, 0] which disables depth cueing. A typical value would be [0, 1], which would cause objects to start to fade at the mid-plane of the window, and completely fade out at a normalized eye distance of 1.

PERSPECTIVE

Set this keyword to 1 to enable a perspective graphics projection. In the perspective projection, objects that are further away will appear smaller. The default is 0, which is the orthogonal perspective.

Properties

ANTIALIAS

By default anti-aliasing is used when drawing lines. Set this property to 0 to disable anti-aliasing.

ASPECT_RATIO

A floating point value indicating the ratio of the Y dimension to the X dimension in data units. If this property is set to a nonzero value, the aspect ratio will be preserved as the graphic is stretched or shrunk. The default value is 0 for all graphics except images, meaning that the aspect ratio is not fixed, but is allowed to change as the graphic is stretched or shrunk.

ASPECT_Z

For 3-D graphics, a floating point value indicating the ratio of the Z dimension to the X and Y dimensions, in data units. If this is a nonzero value, the aspect ratio will be preserved as the graphic is stretched or shrunk. The default value is 0, meaning that the aspect ratio is not fixed, but is allowed to change as the graphic is stretched or shrunk.

AXES (Get Only)

This property retrieves an array that contains all of the AXIS objects within the visualization. For example, for a plot visualization:

p = PLOT(/TEST)

ax = p.AXES

ax[0].TITLE = 'X axis'

ax[1].TITLE = 'Y axis'

ax[2].HIDE = 1 ; hide top X axis

ax[3].HIDE = 1 ; hide right Y axis

See AXIS for a list of the available properties.

BACKGROUND_COLOR

Set this property to a string or RGB vector indicating the graphic's background color. The default value is [255, 255, 255] (white). Set this property to a scalar value to remove the background color.

Tip: To set the background color of the entire window, retrieve the window object using the WINDOW property, and set the BACKGROUND_COLOR on the window object.

BACKGROUND_TRANSPARENCY

Set this property to an integer between 0 and 100 giving the percent transparency of the background color. The default is 100 (completely transparent).

Note: If the BACKGROUND_COLOR property is changed, and the current background transparency is 100, then the BACKGROUND_TRANSPARENCY will be automatically set to 0 (opaque) so that you can see the new color.

CLIP

Set this property to 1 to clip portions of the graphic that lie outside of the dataspace range, or to 0 to disable clipping. The default is 1.

COLOR

Set this property to a string or RGB vector that specifies the color of the plot line.

Note: When you retrieve the COLOR property, the returned value will always be a three-element RGB vector, regardless of how the color was initially specified.

CROSSHAIR (Get Only)

Use this property to retrieve a reference to the Crosshair graphic. All graphics objects within the same set of axes share a single Crosshair graphic. For Plot graphics the default behavior is to display the crosshair when a Mouse_Down event is received. For other graphics the crosshair is disabled. The STYLE property may be used to automatically draw the crosshair, while the LOCATION property may be used to manually draw the crosshair.

You can get and set the following properties on the retrieved crosshair:

Property

Description

ANTIALIAS

Set to 1 to enable anti-aliasing for the lines.

COLOR

A string or RGB vector containing the color.

HIDE

Set to 1 to hide the crosshair, 0 to show.

INTERPOLATE

Set to 1 to force interpolation between Plot data points when SNAP is active. For other graphics this property is ignored. The default is 0.

LINESTYLE

An integer or string giving the line style. The default is 'dot'. See Linestyle Values for additional options.

LOCATION

The location at which to draw the crosshair. For Plot graphics, if SNAP is enabled, then only the X coordinate needs to be supplied. Otherwise, LOCATION should be set to a two-element vector [X, Y] for two-dimensional graphics or [X, Y, Z] for three-dimensional graphics. If STYLE is currently "None", then setting the LOCATION will automatically set the STYLE to "Manual".

NAME

The name of the graphic.

SNAP

Set to 1 to snap the crosshair to the nearest Plot data point. For other graphics this property is ignored. The default is 1.

STYLE

An integer or string giving the crosshair style. Possible values are:
0 - "None" - never draw the crosshair. This is the default for all graphics except 2D plots.
1 - "Manual" - draw the crosshair using the LOCATION property.
2 - "Auto" - automatically draw the crosshair. This is the default for 2D plots.

THICK

The thickness of the lines. The default is 1.

TRANSPARENCY

The percent transparency of the lines. The default is 50.

UVALUE

An IDL variable of any data type.

For example, use the CROSSHAIR property to draw a crosshair on an image:

im = IMAGE(/TEST, TRANSPARENCY=50, AXIS_STYLE=2)

c = im.CROSSHAIR

c.COLOR = 'red'

c.THICK = 2

c.LOCATION = [300, 200]

See Creating Functions to Control Mouse Events for a more detailed crosshair example.

EYE

A floating-point value that specifies the distance from the eyepoint to the viewplane (Z=0). The default is 4.0. The eyepoint is always centered within the viewplane rectangle. IDL converts, maintains, and returns this data as double-precision floating-point.

FONT_COLOR

Set this property to a string or RGB vector that specifies the text color for the title and axes (if present). The default value is "black".

FONT_NAME

Set this property equal to a string specifying the IDL or system font for the title and axes (if present). The default value is "DejaVuSans".

FONT_SIZE

Set this property equal to an integer specifying the font size for the title and axes (if present). The default value is 9 points for the axis text and 11 points for the title.

FONT_STYLE

Set this property equal to an integer or a string specifying the font style for the title and axes (if present). Allowed values are:

Integer

String

Resulting Style

0

"Normal" or "rm"

Default (roman)

1

"Bold" or "bf"

Bold

2

"Italic" or "it"

Italic

3

"Bold italic" or "bi"

Bold italic

HIDE

Set this property to 1 to hide the graphic. Set HIDE to 0 to show the graphic.

HISTOGRAM

Set this property to 1 to connect each point with horizontal and vertical lines. The horizontal lines start at the X location of each point and extend to the next X location. This property is useful for displaying information with discrete or non-linear data, where the X values are typically non-integer bin locations and the Y values represent the "count" of values within each bin. See the STAIRSTEP property for centered bars.

Tip: You can also use the BARPLOT function to create a plot with vertical or horizontal bars.

LINESTYLE

Set this property to an integer or string specifying the line style.

The following table lists the index values, strings, and characters you can use with the LINESTYLE property, and the equivalent characters and strings you can use in the Format string argument.

Index

LINESTYLE Property

Format Argument

Description

0

'solid_line', '-'(dash)

'-' (dash)

solid line

1

'dot', ':'(colon)

':'(colon)

dotted

2

'dash', '--' (double dashes)

'--' (double dashes)

dashed

3

'dash_dot', '-.'

'-.'

dash dot

4

'dash_dot_dot_dot', '-:'

'-:'

dash dot dot dot

5

'long_dash', '__' (two underscores)

'__' (double underscores)

long dash

6

'none', ' ' (space)

' ' (space)

no line

Note: If you use the LINESTYLE value or Format string '-.', the linestyle is set to dash-dot and the plot symbol is not set.

Note: You can also set LINESTYLE to a two-element vector, [repeat, bitmask], specifying a stippling pattern. The repeat indicates the number of times that individual bits in the bitmask should be repeated. (That is, if three consecutive 0’s appear in the bitmask and the value of repeat is 2, then the line that is drawn will have six consecutive bits turned off.) The value of repeat must be an integer between 1 and 255. The bitmask indicates which pixels are drawn and which are not along the length of the line. The bitmask should be specified as a 16-bit hexadecimal value. For example, LINESTYLE = [2, 'F0F0'X] describes a dashed line (8 bits on, 8 bits off, 8 bits on, 8 bits off).

NAME

A string that specifies the name of the graphic. The name can be used to retrieve the graphic using the brackets array notation. If NAME is not set then a default name is chosen based on the graphic type.

POSITION

Set this property to a four-element vector that determines the position of the graphic within the window. The coordinates [X1, Y1, X2, Y2] define the lower left and upper right corners of the graphic. Coordinates are expressed in normalized units ranging from 0.0 to 1.0. On creation, if the DEVICE keyword is set, the units are given in device units (pixels).

Note: After creation, you can set the POSITION to either a two or four-element vector. If two elements are provided, the center of the graphic will be translated to that position. If four elements are provided, the graphics will be translated and scaled to fit the position.

RGB_TABLE

The number of the predefined IDL color table, or a 3 x 256 or 256 x 3 byte array containing color values to use for vertex colors. If the values supplied are not of type byte, they are scaled to the byte range using BYTSCL. Use the VERT_COLORS property to specify indices that select colors from the values specified with RGB_TABLE.

SHADOW_COLOR

Set this property to a string or RGB vector that specifies the color of the shadow lines. The default is "gray".

SYM_COLOR

Set this property to a string or RGB vector that specifies the color for the plot symbol. If this property is not set then the symbol color will match the COLOR.

SYM_FILLED

Set this property to 1 to fill the symbols.

SYM_FILL_COLOR

Set this property to a string or RGB vector that specifies the color for the filled portion of the symbol. If this property is not set then the symbol fill color will match the SYM_COLOR.

SYM_INCREMENT

Set this property to an integer value specifying the number of plot vertices between symbols. The default value is 1, which places a symbol on every vertex.

SYM_OBJECT

Set this property equal to an object reference to be used for the plotting symbol. The SYM_OBJECT may be either an IDLgrModel object or an atomic graphics object.

SYM_SIZE

A floating point value specifying the size of the plot symbol. A value of 1.0 produces a symbol that is 10% of the width/height of the plot.

SYM_THICK

A floating point value from 1.0 to 10.0 that specifies the thickness (in points) of the plot symbol.

SYM_TRANSPARENCY

An integer between 0 and 100 that specifies the percent transparency of the symbols. The default value is 0.

SYMBOL

A string giving the symbol name. Allowed values are:

"None" (the default)

"Plus" or "+"

"Asterisk" or "*"

"Period" or "dot"

"Diamond" or "D"

"Triangle" or "tu"

"Square" or "s"

"X"

"Greater_than" or ">"

"Less_than" or "<"

"Triangle_down" or "td"

"Triangle_left" or "tl"

"Triangle_right" or "tr"

"Tri_up" or "Tu"

"Tri_down" or "Td"

"Tri_left" or "Tl"

"Tri_right" or "Tr"



"Thin_diamond" or "d"

"Pentagon" or "p"

"Hexagon_1" or "h"

"Hexagon_2" or "H"

"Vline" or "|"

"Hline" or "_"

"Star" or "S"

"Circle" or "o"



Note that symbol names of more than 1 character are case insensitive, while single-character names are case sensitive.

THICK

Set this property to a value between 0 and 10 that specifies the plot line thickness. A thickness of 0 displays a thin hairline on the chosen device. The default value is 1.

TITLE

Set this property to a string specifying a title. The title properties may be modified using FONT_COLOR, FONT_NAME, FONT_SIZE, and FONT_STYLE. After creation the TITLE property may be used to retrieve a reference to the title text object, and the TEXTproperties may be used to modify the title object.

You can add Greek letters and mathematical symbols using a TeX-like syntax, enclosed within a pair of "$" characters. See Adding Mathematical Symbols and Greek Letters to the Text String for details.

TRANSPARENCY

An integer between 0 and 100 that specifies the percent transparency of the plot line. The default value is 0.

UVALUE

Set this property to an IDL variable of any data type.

VERT_COLORS

A vector of indices into the color table for the color of each vertex (plot data point). Alternately, a 3 x N byte array containing vertex color values. If the values supplied are not of type byte, they are scaled to the byte range using BYTSCL. If indices are supplied but no colors are provided with the RGB_TABLE property, a default grayscale ramp is used. If a 3 x N array of colors is provided, the colors are used directly and the color values provided with RGB_TABLE are ignored. If the number of indices or colors specified is less than the number of vertices, the colors are repeated cyclically.

Note: VERT_COLORS can be an array of RGB triplets or RGBA colors.

WINDOW (Get Only)

This property retrieves a reference to the WINDOW object which contains the graphic.

WINDOW_TITLE

Set this property to the title of the IDL Graphic window. The title is displayed in the window's title bar.

XY_SHADOW

Set this property to 1 to turn on the plot shadow in the XY plane.

XZ_SHADOW

Set this property to 1 to turn on the plot shadow in the XZ plane.

YZ_SHADOW

Set this property to 1 to turn on the plot shadow in the YZ plane.

ZCLIP

A two element floating-point vector representing the near and far clipping planes to be applied to the objects in this view. The vector should take the form [near, far]. By default, these values are [1, -1]. IDL converts, maintains, and returns this data as double-precision floating-point.

Version History

8.0

Introduced

8.1

Added the following properties: CROSSHAIR, UVALUE, WINDOW, [XYZ]SHOWTEXT, [XYZ]STYLE

The THICK property was changed to accept a value between 0 and 10

Added the following methods: Delete, GetData, GetValueAtLocation, SetData

8.2

Added AXES, BACKGROUND_COLOR, BACKGROUND_TRANSPARENCY, CLIP properties.

8.2.1

Added ANTIALIAS property.

[XYZ]TICKUNITS accepts exponent as a value.

8.2.2

Change POSITION from a keyword to a property.

Add EYE property.

8.2.3

Added the ability to use a stippling pattern for LINESTYLE.

8.6 Changed default font name and font size.

See Also

!COLOR, Formatting IDL Graphics Symbols and Lines, LEGEND, PLOT, SURFACE, Using IDL graphics
